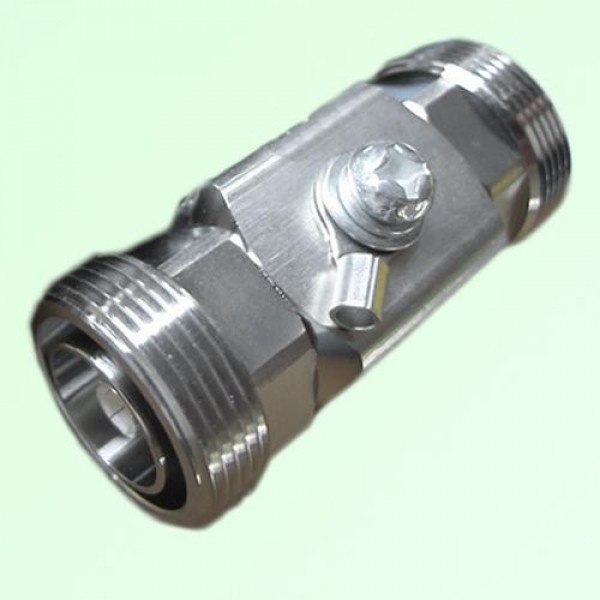

• Surge Arrestor 1/4 Wavelength 7/16 DIN Female to Female 800-2500MHz
CategoryLightning Surge Arrestor
End A7/16 DIN Female Jack
End B7/16 DIN Female Jack
Frequency800-2500MHz
Impedance50Ω
Insertion Loss≤0.15dB
Peak Power2500W
Residual Voltage≤15 kV/µs
Capacity30kA(8/20µs)
VSWR≤1.2
Wavelength1/4λ

Write a review

Please login or register to review

Surge Arrestor 1/4 Wavelength 7/16 DIN Female to Female 800-2500MHz

  • Product Code: LSA-7_16DIN/F-7_16DIN/F-DC2.5-1/4
  • Availability: 1-2 Days
  • Product ID: 105537
  • $29.00



7/16 DIN to 7/16 DIN Lightning Surge Arrestor, 1/4 Wavelength 7/16 DIN Female Jack to 7/16 DIN Female Jack Lightning Surge Arrestor, 800-2500MHz. Low VSWR.

Tags: 7/16 DIN Female to 7/16 DIN Female
