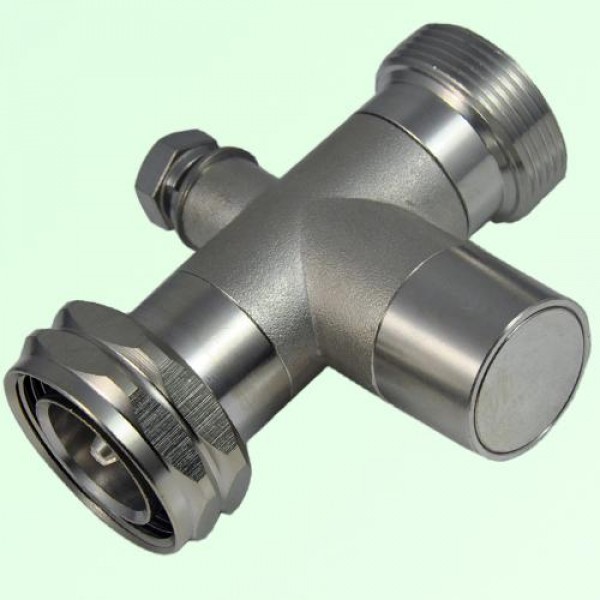

7 / 16 DIN to 7 / 16 DIN Lightning Surge Arrestor, 1 / 4 Wavelength 7 / 16 DIN Female Jack to 7 / 16 DIN Male Plug Lightning Surge Arrestor, 800-2500MHz.
Specification | |
|---|---|
| Category | Lightning Surge Arrestor |
| End A | 7/16 DIN Female Jack |
| End B | 7/16 DIN Male Plug |
| Frequency | 800-2500MHz |
| Impedance | 50Ω |
| Insertion Loss | ≤0.15dB |
| Peak Power | 2500W |
| Residual Voltage | ≤15 kV/µs |
| Capacity | 30kA(8/20µs) |
| VSWR | ≤1.2 |
| Wavelength | 1/4λ |
Surge Arrestor 1/4 Wavelength 7/16 DIN Female to Male 800-2500MHz
- Product ID: 105536
- Product Model: LSA-7_16DIN/F-7_16DIN/M-DC2.5-1/4
- Availability: 1-2 Days
Free FedEx/DHL Shipping On Orders Over 200
-
$29.00
