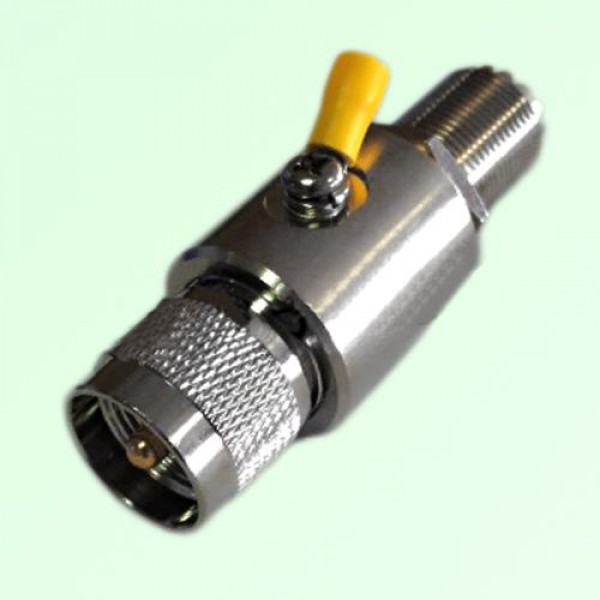

• Surge Arrestor UHF SO239 Bulkhead Female to PL259 Male DC-1.5GHz
CategoryLightning Surge Arrestor
End AUHF Bulkhead Female Jack
End BUHF PL259 Male Plug
Frequency0~1.5GHZ
Impedance50Ω
Insertion Loss≤0.2dB
Capacity10kA(8/20µs)
VSWR≤1.2
Continuous Operating Voltage≤70V
Nominal Start-Up Voltage207~263V(DC100V/s)
Nominal Discharge Current5kA(8/20µs)
Clamping Voltage≤200V(10/700µs)

Write a review

Please login or register to review

Surge Arrestor UHF SO239 Bulkhead Female to PL259 Male DC-1.5GHz

  • Product Code: LSA-UHF/BF-UHF/M-DC1.5
  • Availability: 1-2 Days
  • Product ID: 105639
  • $15.00



UHF to UHF Lightning Surge Arrestor, UHF SO239 Bulkhead Female Jack to UHF PL259 Male Plug DC-1.5GHz Lightning Surge Arrestor. Low VSWR.

Tags: UHF Bulkhead Female to UHF Male
