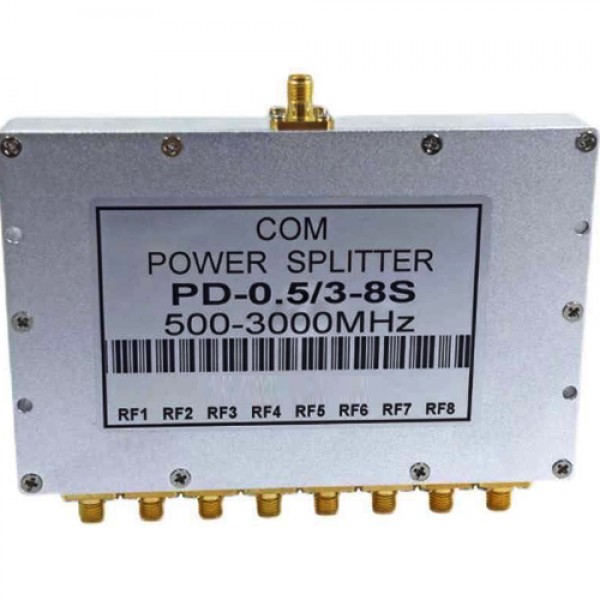

8 Way SMA Female Jack RF Power Splitter / Power Divider / Power Combiner, 500-3000MHz
Specification | |
|---|---|
| Frequency Range(MHz) | 500-3000MHz |
| Insertion Loss(dB) | ≤4.5 |
| Isolation(dB) | ≥14(500-700MHz),≥20(700-3000MHz) |
| Amplitude balance(dB) | ≤0.5 |
| Phase balance degree(°) | ±5° |
| VSWR | ≤1.35:1(Input),≤1.30:1(Output) |
| Impedance(Ω) | 50 |
| Max Power(W) | 20 |
| Connectors | SMA Female |
| Operating Temperature(°C) | -30~+70 |
8 Way SMA Female Jack RF Power Splitter/Divider 500-3000MHz
- Product ID: 112110
- Product Model: RPS-SMA/F-3500-8-SD-BS
- Availability: 1-2 Days
Free FedEx/DHL Shipping On Orders Over 200
-
$138.00
